How to Tune a Water Flow Control Loop
A step-by-step PI Tuning guide for Site Engineers.
If your water flow control loop is oscillating, jittery, or slow to settle back onto setpoint, the fix is usually more procedural than technical.
This watch-on-demand video guide walks through a five-step process for water flow control loop tuning – field inspection, trend review, calculating new PI (proportional-integral) settings using the Lambda method, and testing the result – using a real worked example from a recent Mipac webinar.
👉 Watch now
Why Water Flow Control Loops matter in Mineral Processing
Water flow loops rarely get much attention on a processing facility, but they sit behind a surprising number of process objectives: controlling density, maintaining a level, managing heat exchange (copper cooling blocks, for example), and adding wash water at the right rate, among many others.
When a water flow loop isn’t controlled well, the consequences show up elsewhere in the plant rather than at the loop itself. Poor grind or poor separation in a cyclone is a common symptom. So is unnecessary mess and equipment damage from a valve that’s constantly hunting. In more serious cases, an untuned loop contributes to safety incidents or major downtime and quietly costs grade and recovery over time.
What Is a Water Flow Control Loop, and how does it work?

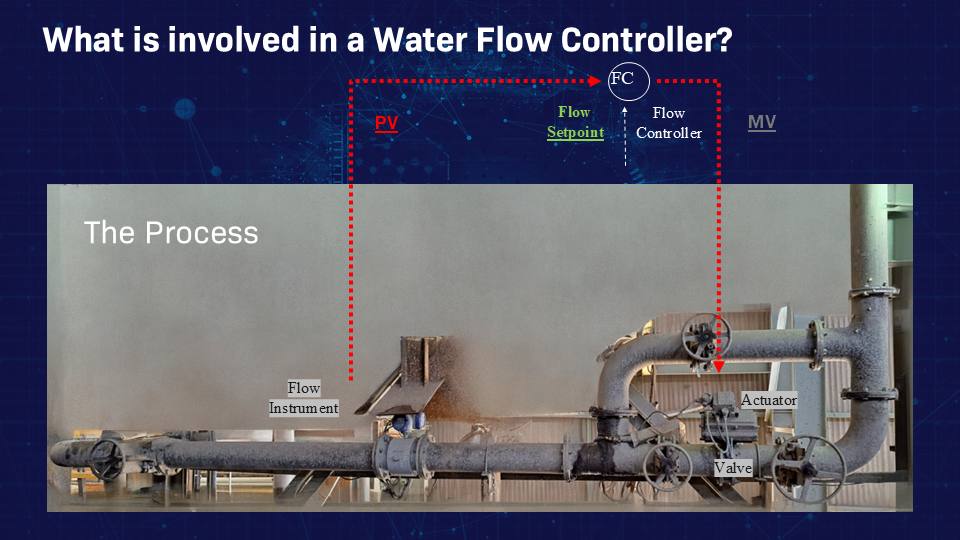

A water flow control loop is a control system that compares a flow setpoint (SP) against the measured process variable (PV) – the actual flow rate – and adjusts a manipulated variable (MV), typically a control valve position, to close the gap between them.
QUICK REFERENCE PV = process variable (the measured value) · SP = setpoint (the target value) · MV = manipulated variable (the controller's output, usually valve position) · PID = proportional-integral-derivative (the possible control actions a controller can use)
The controller needs to hold flow accurately and quickly to the setpoint across the valve’s full operating range, while accounting for installed valve characteristics, upstream and downstream pressure changes, setpoint changes, and signal noise.

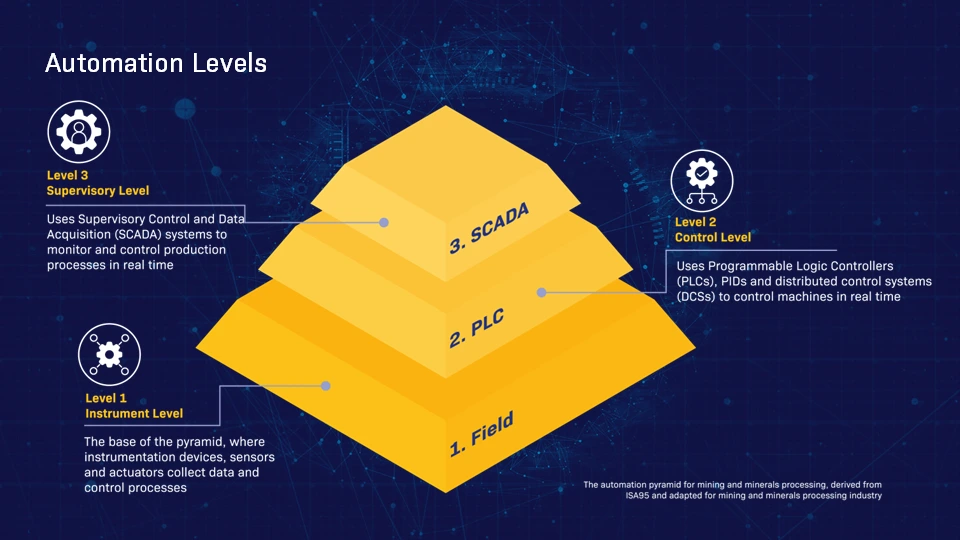

Getting this right matters regardless of which level of the automation stack you’re working in – field instrumentation and actuators, PLC or DCS control logic, or SCADA supervision – because a poorly tuned loop at the field level undermines everything built on top of it.
5 Steps to Tune a Water Flow Control Loopt
Step 1: Conduct a field inspection of the Flow Loop
Before touching any controller settings, go and look at the loop. Two feet and a heartbeat – grab a drawing and go for a walk.
Check the hardware and installation first:
- Does the field layout match the P&ID drawing?
- Can the control valve fully travel?
- Are there erratic readings, errors, or flashing lights on the transmitter display?
- Are the valve’s air connections leaking?
- Are all flowmeter cables connected, sealed, in good condition, and fixed in place?
- Does the control valve make any large, irregular (“jumpy”) movements?
Then run a point-to-point and control test: review the readings on the flow transmitter display against the control system, and confirm with the control room operator (CRO). With approval, run a step test — move the valve position manually by 10% and back, taking the loop out of auto — and check whether the valve position jitters when it’s returned to auto.
Step 2: Review the trend and run a manual Step Test

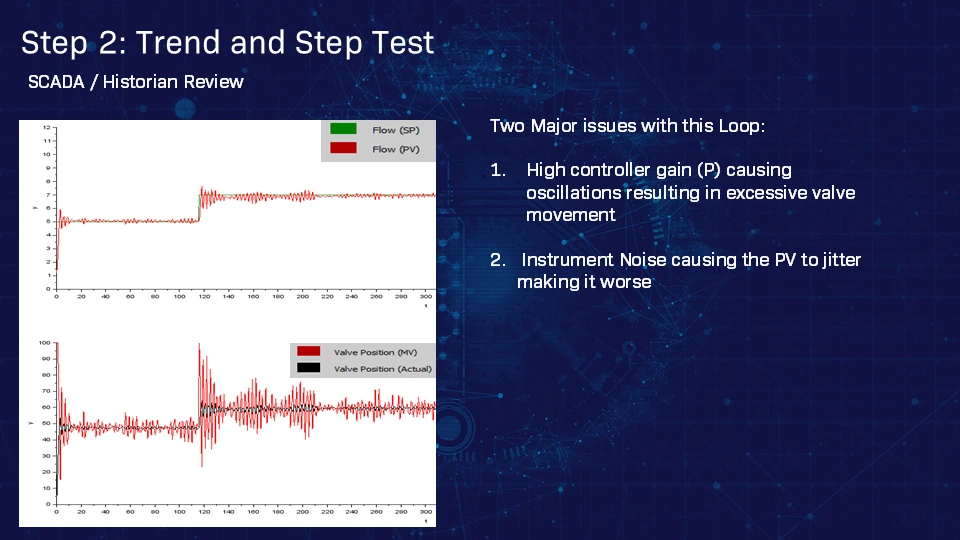

Pull up the SCADA or historian trend and look for the pattern behind the symptom. A common combination is high controller gain (P), which causes oscillation and excessive valve movement, compounded by instrument noise that causes the PV to jitter: each issue makes the other look worse.

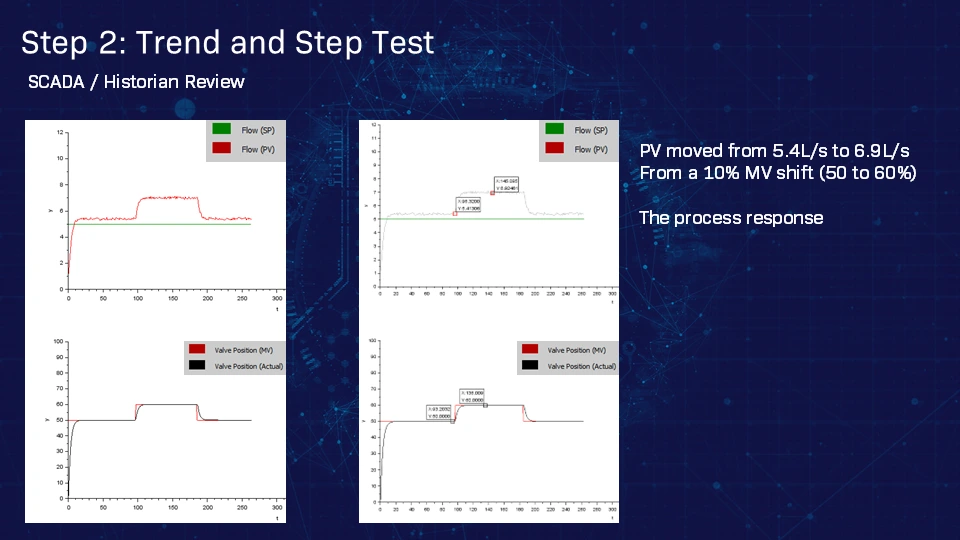

With approval, run a manual step test: shift the valve position (MV) by a known amount and record how the process variable responds.

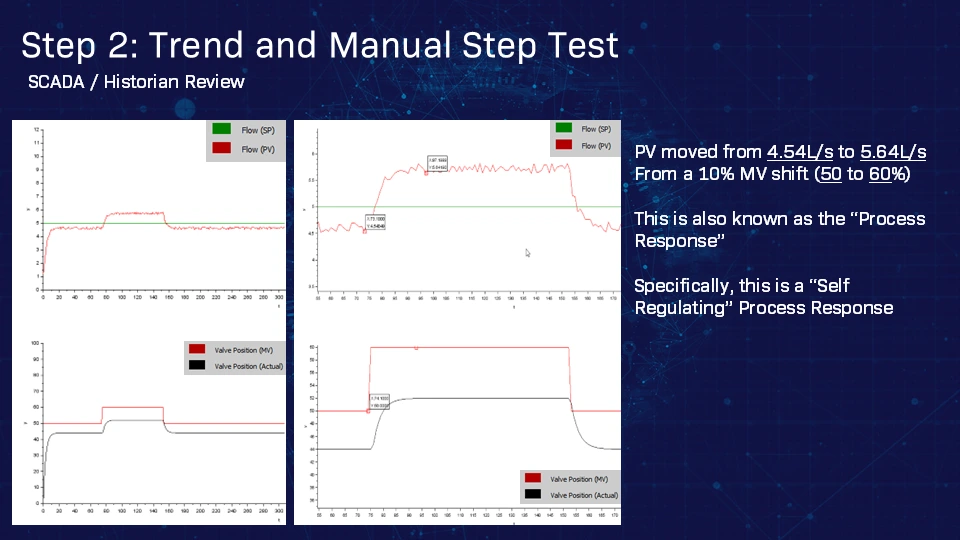

In a recent example, a 10% MV shift (from 50% to 60%) moved the PV from 4.54 L/s to 5.64 L/s. This is the loop’s process response – specifically, a self-regulating process response, meaning the flow settles at a new steady value rather than ramping indefinitely.
Step 3: Calculate new PI settings with the Lambda Tuning Method

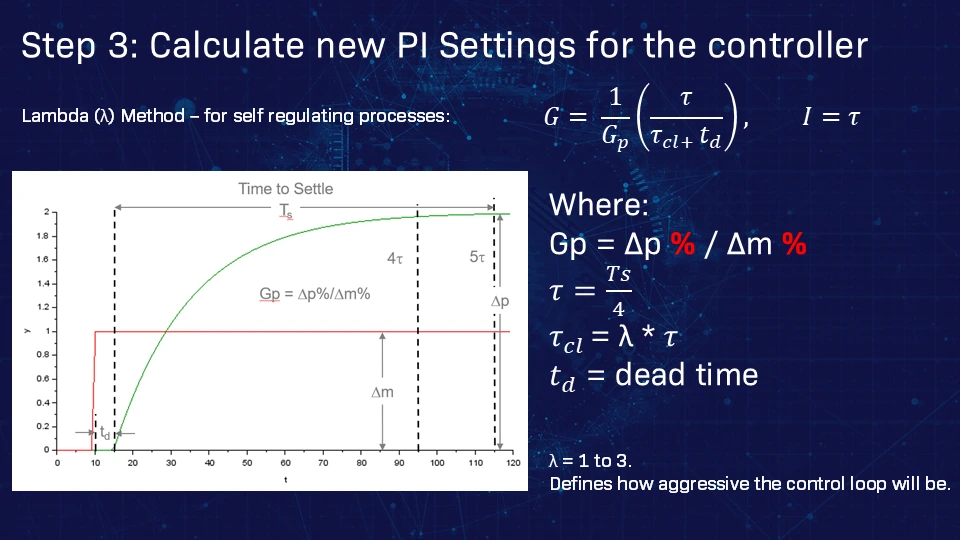

For self-regulating processes like water flow, the Lambda (λ) method gives a reliable, conservative starting point for controller gain and integral time:
G = (1 / Gp) × (τ / (τcl + td)) I = τ
Where:
- Gp = the process gain, calculated as the change in PV divided by the change in MV
- τ = the process time constant, approximated as the settling time (Ts) divided by 4
- τcl = λ × τ, where λ (typically 1 to 3) defines how aggressive the tuned loop will be
- td = dead time (the delay before the process starts responding)
Using the step test data from Step 2:

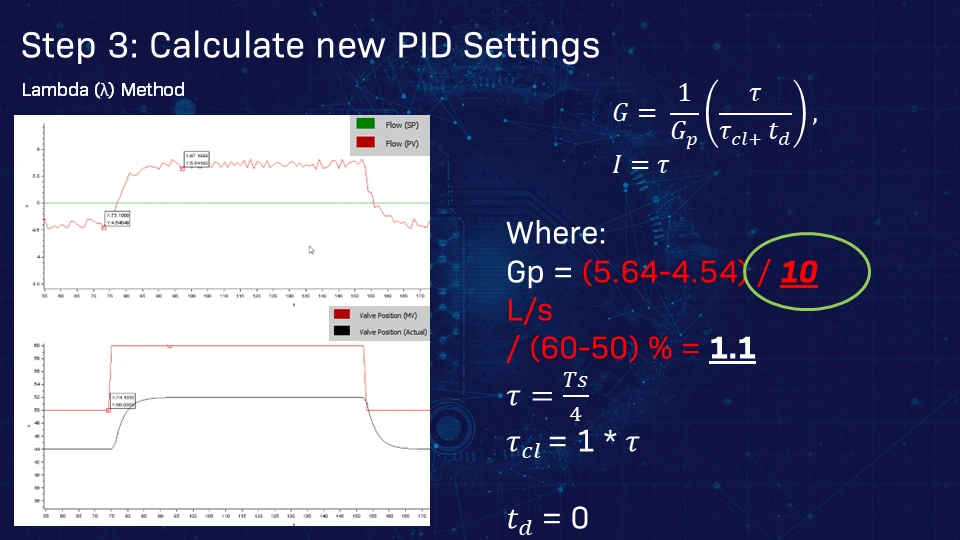

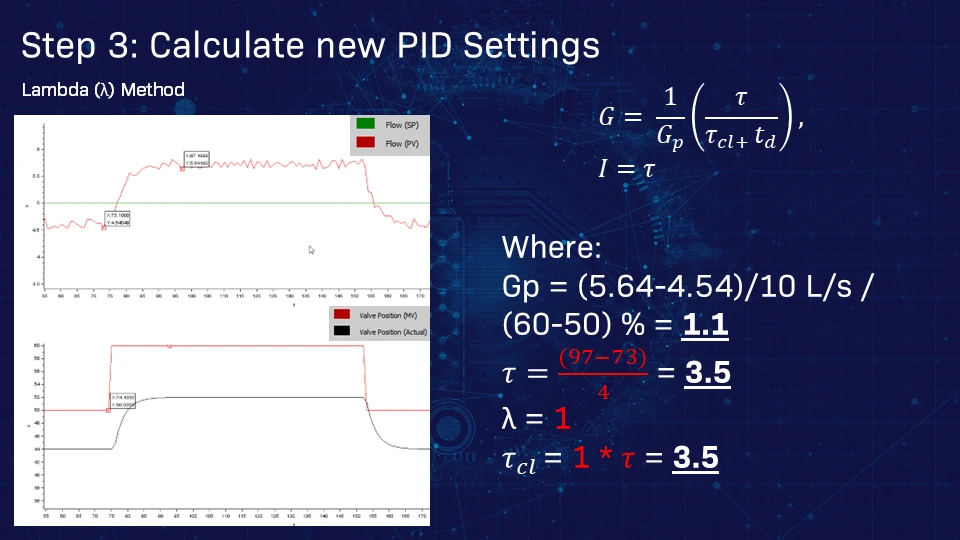

- Gp = (5.64 − 4.54) / (60 − 50)% = 1.1
- τ = (97 − 73) / 4 = 3.5 seconds
- With λ = 1, τcl = 1 × 3.5 = 3.5
- td = 0 (no measurable dead time)

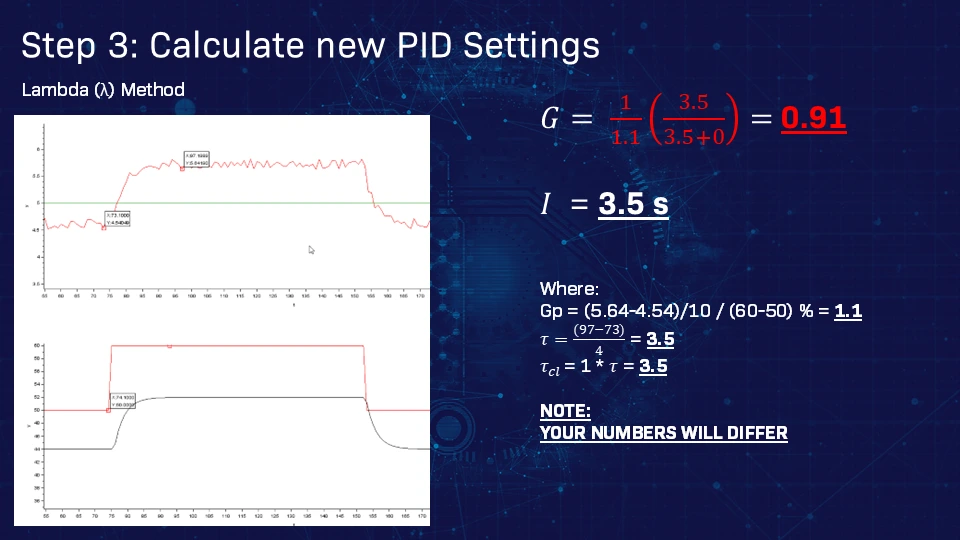

This gives a controller gain P = 0.91 and an integral time I = 3.5 seconds. Derivative action generally isn’t required for a loop like this.
Your own numbers will differ: the process gain and time constant depend entirely on the specific loop, valve, and instrument you’re working with.
Step 4: Confirm independent vs dependent controller structure

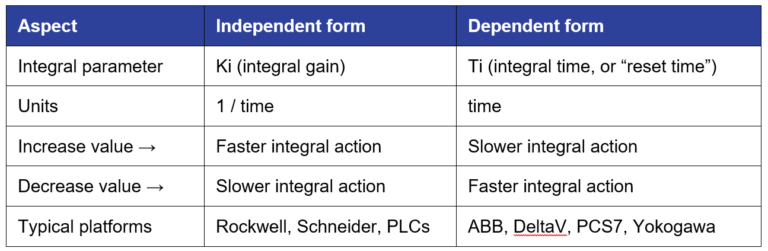

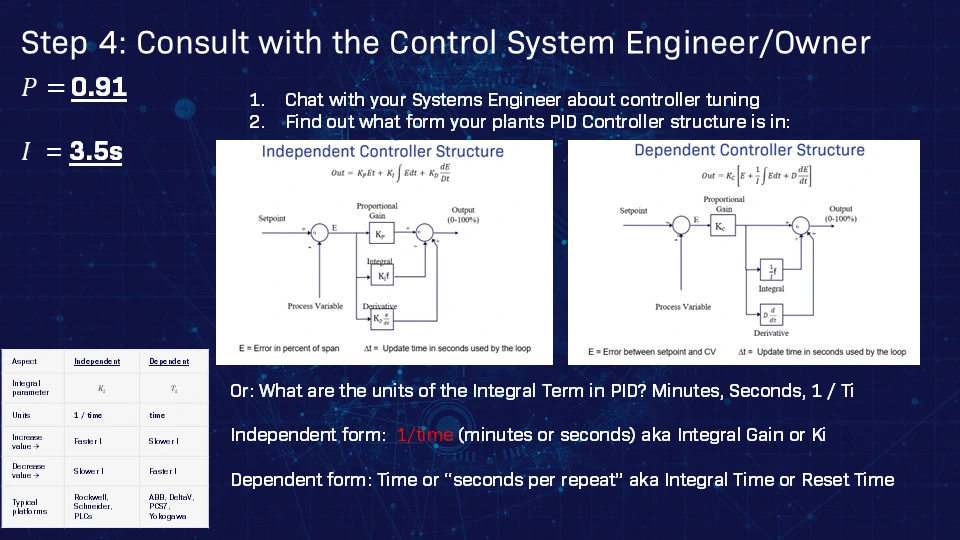

Before entering a new gain value anywhere, talk to your systems engineer and confirm what form your plant’s PID controller structure is in. This matters more than it might seem, because the same physical result – “make the integral action faster” – means moving the value in opposite directions depending on the structure:

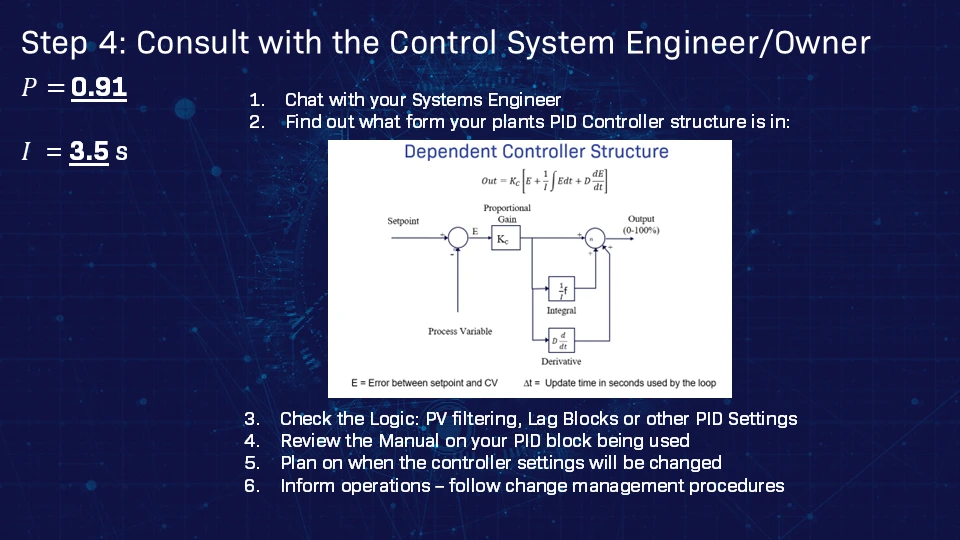

While you’re consulting your systems engineer, also check the logic for PV filtering or lag blocks that might interact with the new settings, review the manual for the specific PID block being used, plan when the change will be made, and follow your site’s change management procedure, including informing operations before anything changes.
Step 5: Test and iterate on the new loop settings
Input the new settings into the controller faceplate and test some setpoint changes. If you can’t adjust the faceplate directly, you may need to go into the control logic or block itself – again, talk to your systems engineer before doing this.

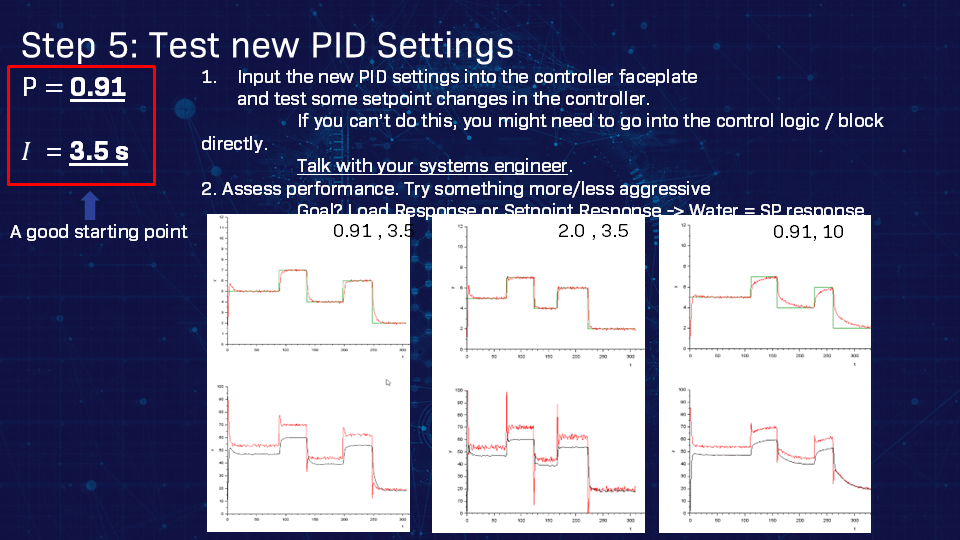

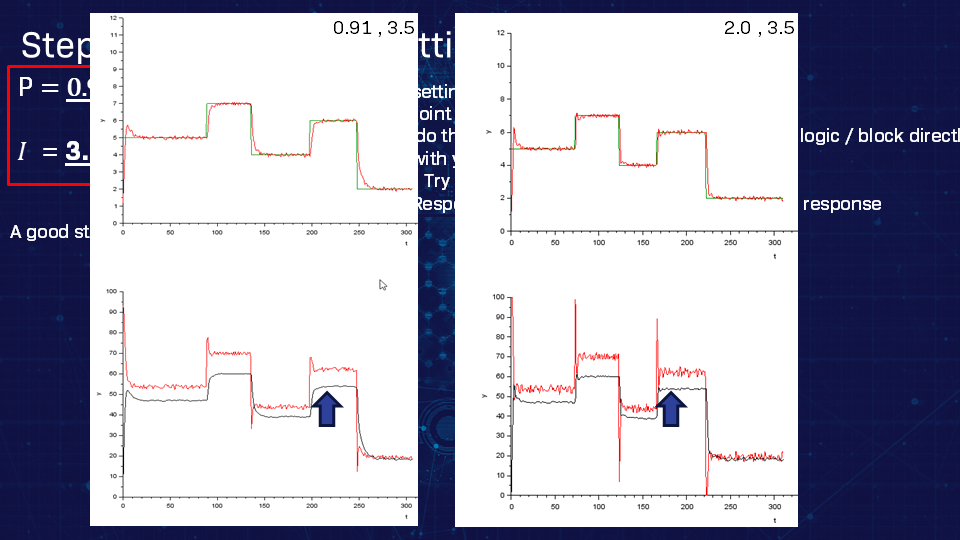

Assess performance against the right goal. For a water loop, that’s typically setpoint response rather than load response. Compare a few options around your calculated starting point – for example, the calculated values (0.91, 3.5), a more aggressive gain (2.0, 3.5), and a slower integral time (0.91, 10) – and watch how each affects overshoot and valve movement before settling on a final set of values.
Additional Checks: Filtering and Valve Deadband
A filter (LAG) block on the PV can smooth out instrument noise, typically with a filter time (Tf) of 2 to 3 seconds maximum for flow. Be aware that applying a lag to the PV can produce mixed results depending on the integral term; as a rough guide, the LAG filter time is typically set to roughly a fifth of the integral time.
Valve actuator deadband and resolution in the field deserve a look if tuning alone doesn’t resolve the issue. A valve with poor resolution, for example, moving in 5% or 10% steps rather than 0.5%, will produce a stepped, sluggish process response no matter how well the controller is tuned, because the valve simply can’t make the small movements the controller is asking for (Emerson Control Handbook, 6th Edition, 2023).
Common Mistakes when tuning a Water Flow Control Loop
Changing the controller gain before confirming independent vs dependent structure. This is the single biggest cause of a loop becoming more aggressive or more sluggish than intended.
Skipping the field inspection. No amount of controller tuning will fix a sticking valve, a leaking air connection, or a noisy instrument.
Applying new settings without following change management. Loop changes should be planned, communicated to operations, and tested with setpoint changes before being left unattended.
Key Takeaways
Start in the field, not in the controller faceplate. Most flow loop problems trace back to hardware.
Use both a historian trend review and a manual step test to separate an oscillation problem from a noise problem.
The Lambda method gives a solid, conservative starting point for PI settings . Treat the result as a starting point to test and refine, not a fixed target.
Confirm whether your plant's controller uses independent or dependent form before entering any new values..
Always follow change management and inform operations before implementing new settings
